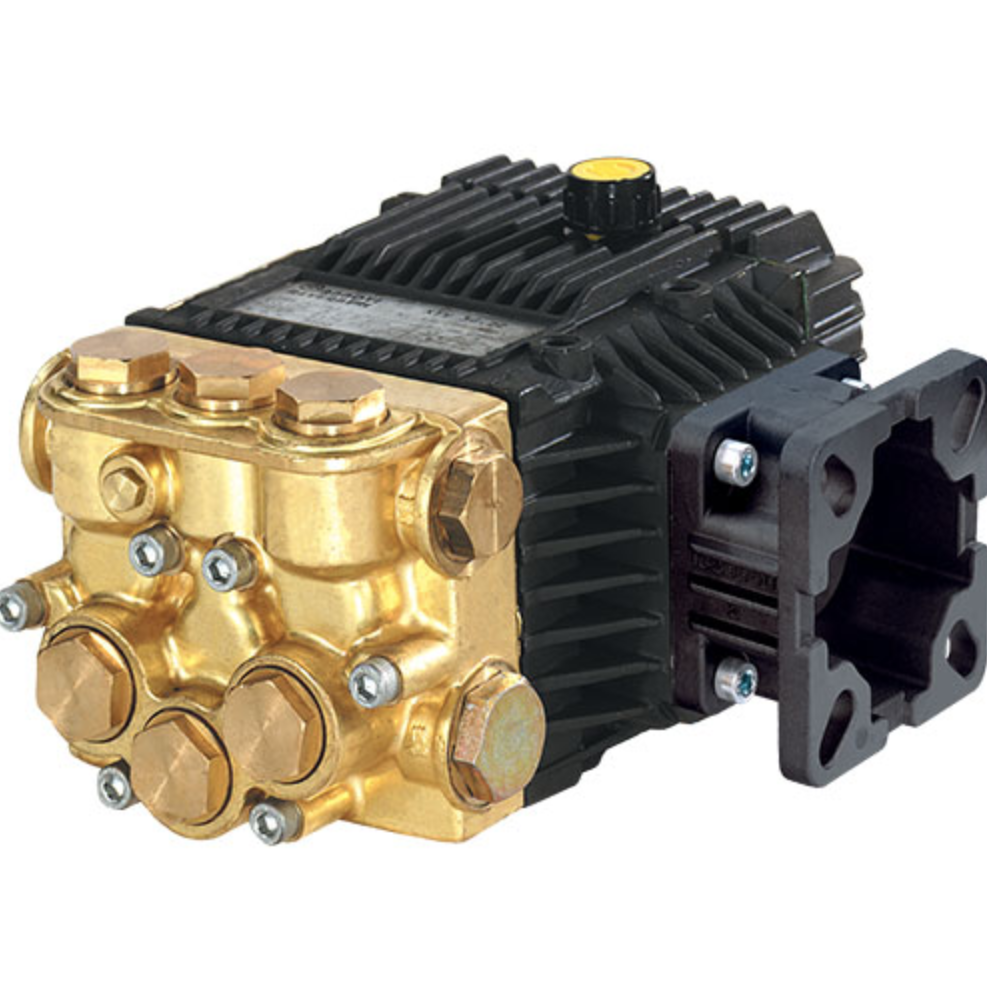

The Annovi Reverberi XTV3G22D-F7, D version 3/4" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The XTV3G22D-F7 can produce up to 2200 Max PSI, 3 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless brass connecting rods and ceramic pistons, the XTV3G22D-F7 weighs in at 11 lbs and boasts a sleek compact design.
Pump - Annovi Reverberi XTV3G22D-F7
SKU: SP-XTV3G22E-F8
Weight 11 lbs Pump Orientation Horizontal
Pump Head Material brass
Connecting Rods brass
Max GPM 3
Max L/Min 11.4
Max PSI 2200
Max Bar 150
Power EBHP 4.5
Bore Dia mm 15
Stroke mm 7.2
CSID Stamp C
Inlet (in) 1/2" F
Outlet (in) 3/8" F
Max Temp 140° F
Oil Capacity (oz.) 10
RPM 3400
Shaft Size 3/4"
Shaft Version Direct Gas Shaft
Shaft Type Hollow
Flange F7
Market Commercial
Pump Type Tri-Plex Plunger
